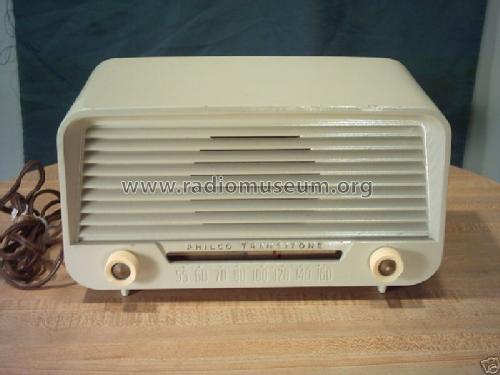

52-540-I (52 540-1) Code 122 Transitone
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 51028
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 52-540-I Code 122 Transitone - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Color: Ivory. There are different output tubes listed: Beitman featured the 50L6GT, Rider's a 35L6GT, while Sam's shows a 50L6GT in the schematic, but mentions also a 35L6. To be on the safe side we list the models separately, since printed labels stating different tubes had been applied to the radios.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 23 (last), covering up to 1954
- Mentioned in
- Beitman Radio Diagrams, Vol. 12, 1952
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-51, Set 154, Folder 10)
