• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51049

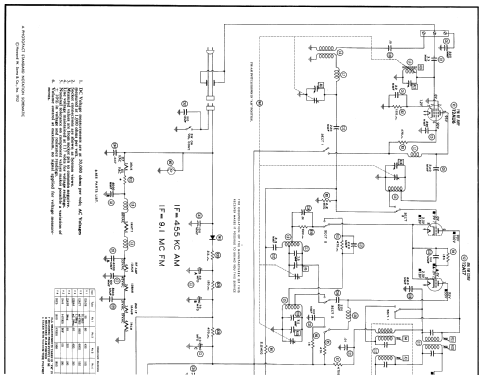

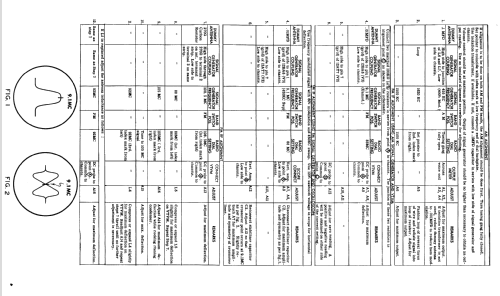

Click on the schematic thumbnail to request the schematic as a free document.

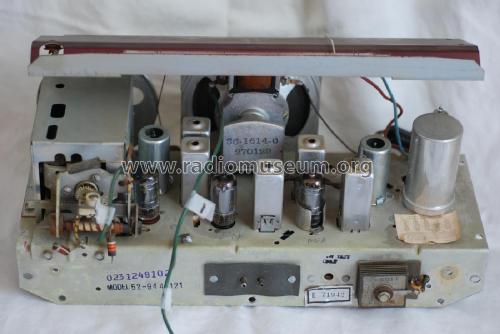

• Number of Tubes
• 6

• Valves / Tubes
• 12AU6 12AT7 12BA6 12AU6 19V8 35C5

• Main principle
• Superhet with RF-stage; ZF/IF 455/9100 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 52-944 - Philco, Philadelphia Stg. Batt

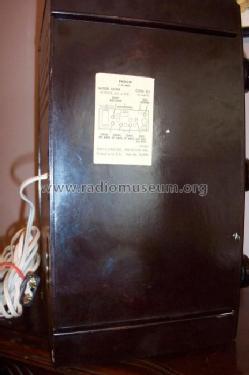

• Shape
• Tablemodel, low profile (big size).

• Notes

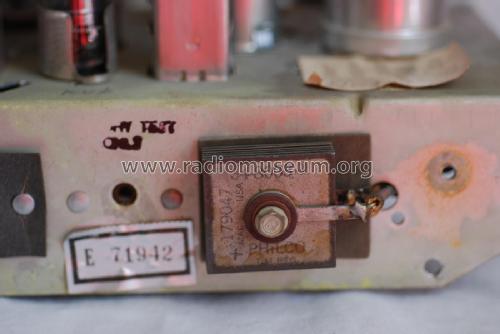

• Selenium Rectifier. Mahogany plastic cabinet.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 12, 1952

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965 (Rider's Perpetual, Volume 23 (last))

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 6-52, Set 169, Folder 12)

• Literature/Schematics (3)
• Philco Folder 180-3436 for 1952.

• Other Models

• Here you find 4007 models, 2207 with images and 3656 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
