• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51063

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7A8 7B7 7C6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

• Power type and voltage
• AC/DC-set / AC/DC 117V =110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

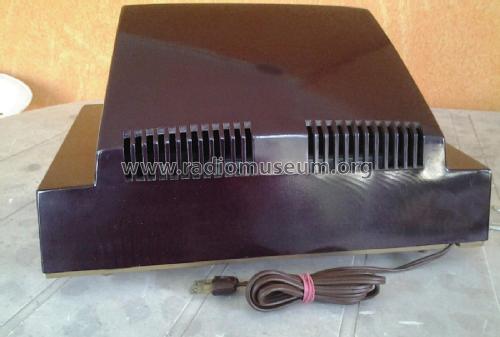

• Model: Transitone 53-566 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes

• Philco model 53-566 is an AC-DC operated AM superheterodyne receiver. Color: Ivory - Mahogany.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 13, 1953

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Rider's Perpetual, Volume 23 (last) = covering up to 1954

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (set 185, folder 11, dated 11-52)
