• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51074

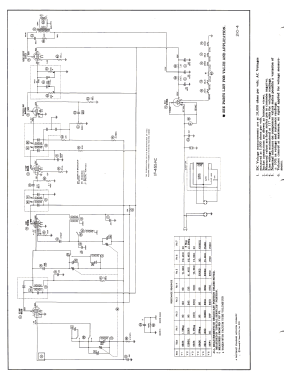

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BJ6 12BE6 6BJ6 6AQ6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 53-804 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 370 x 165 x 190 mm / 14.6 x 6.5 x 7.5 inch

• Notes

• Code 121

  30 Watts

  Clock with Telechron movement.

• Net weight (2.2 lb = 1 kg)
• 9 lb 0 oz (9 lb) / 4.086 kg

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 13, 1953

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965 (Rider's Perpetual, Volume 23 (last))

• Literature/Schematics (1)

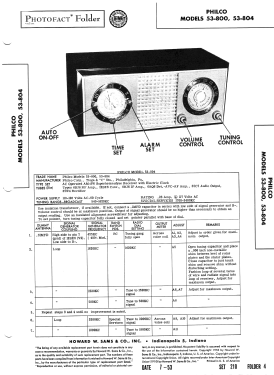

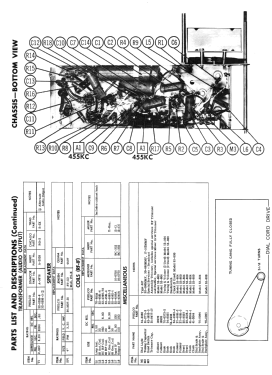

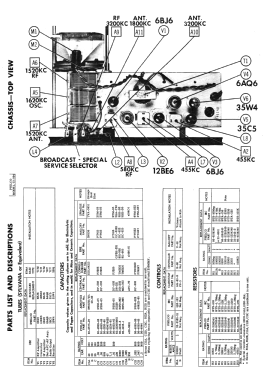

• Photofact Folder, Howard W. SAMS (Date 7-53, Set 210, Folder 4)
