• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51079

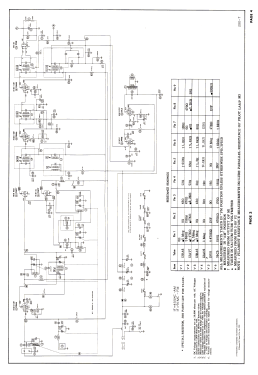

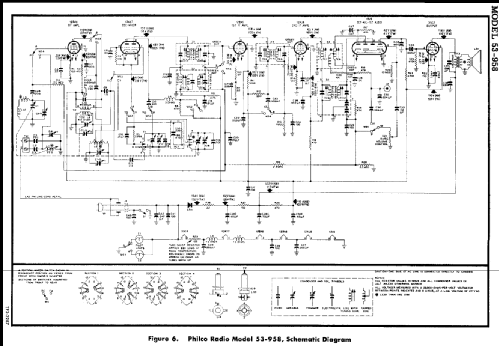

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

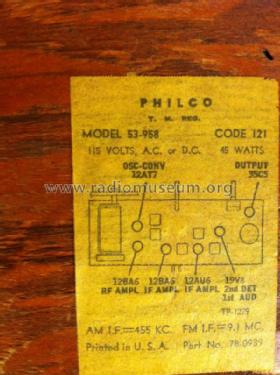

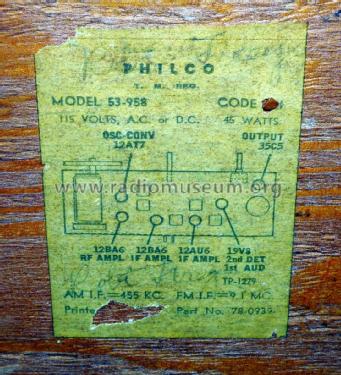

• Valves / Tubes
• 12BA6 12AT7 12BA6 12AU6 19V8 35C5

• Main principle
• Superhet with RF-stage; ZF/IF 455/9100 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

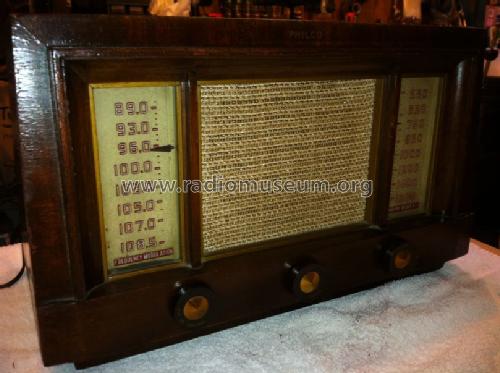

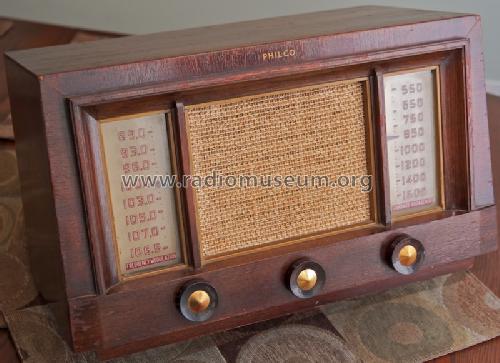

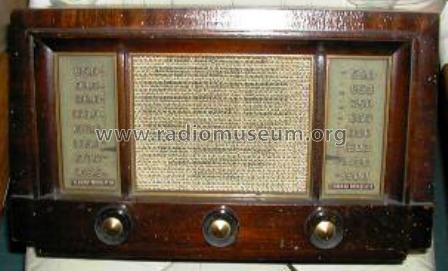

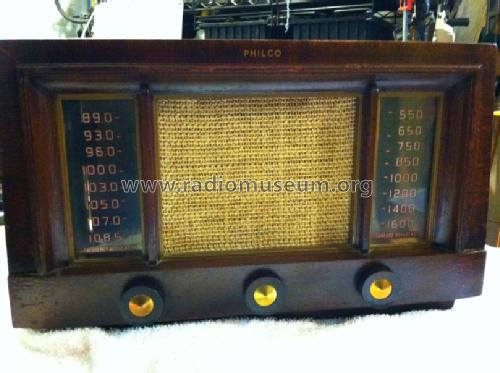

• Model: 53-958 - Philco, Philadelphia Stg. Batt

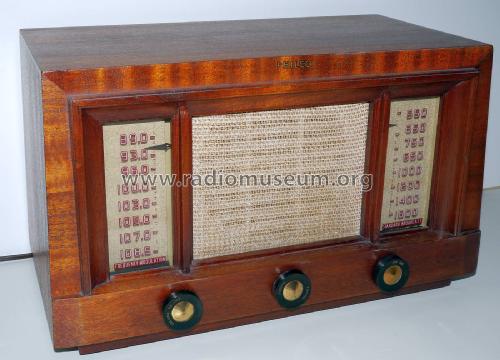

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 9.75 x 8.75 inch / 406 x 248 x 222 mm

• Notes

• Selenium rectifier.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

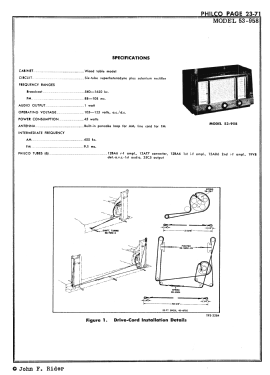

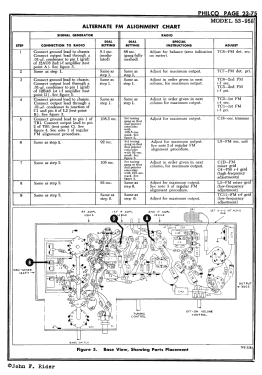

• Circuit diagram reference

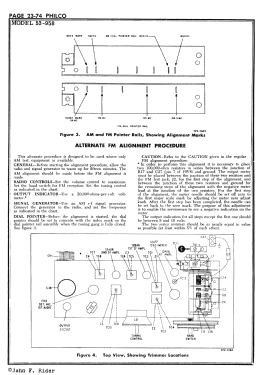

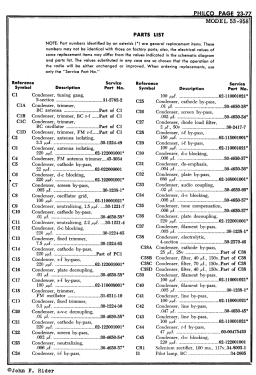

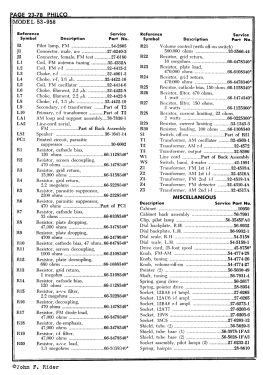

• Rider's Perpetual, Volume 23 (last), covering up to 1954

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
