53-T1824 R-F Chassis 71, Def.Chassis G1 (Code 124)

Philco, Philadelphia Stg. Batt. Co.; USA

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Philco, Philadelphia Stg. Batt. Co.; USA

Year
1952 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
357800

Schematics

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091575) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091576) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091577) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091578) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091579) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091580) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091581) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091582) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091583) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091584) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091585) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091586) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091587) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091588) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091589) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091590) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091591) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091592) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091593) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

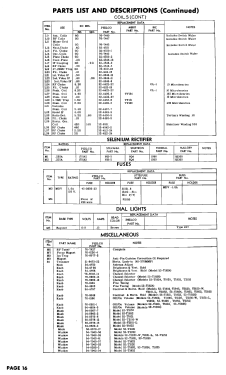

53-T1824 R-F Chassis 71, Def.Chassis G1 ; Philco, Philadelphia (ID = 3091594) Television — Philco, Philadelphia 53-T1824 R-F Chassis 71, Def.Chassis G1 (3)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
19

Valves / Tubes
6BQ7 6J6 6CB6 6CB6 6CB6 6AL5 12AV7 6AQ5 6AU6 6T8 6V6GT 6BF6 or 6AT6 6SN7GTA 6AH4GT 6SN7GTA 6BQ6GT 6V3 1B3GT 21EP4A

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Material
Wooden case

from Radiomuseum.org
Model: 53-T1824 R-F Chassis 71, Def.Chassis G1 - Philco, Philadelphia Stg. Batt

Shape
Console with any shape - in general

Notes
Philco model 53-T1824 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with RF Chassis 71, Deflection chassis G1, VHF tuner 76-7427 and picture tube 21EP4A.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 179, folder 9, dated 9-52)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
