53-T2270 Ch= 91, J-1 Code 126

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1953
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 165111

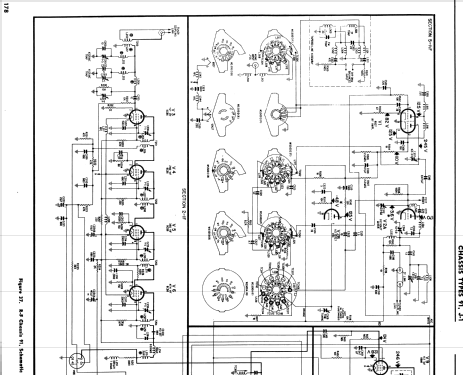

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 22
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 53-T2270 Ch= 91, J-1 [Code 126] - Philco, Philadelphia Stg. Batt
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 26 x 40 x 25 inch / 660 x 1016 x 635 mm
  • Notes

  • The Philco 53-T2270 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with RF chassis 91, Deflection chassis J-1 and picture tube 21EP4A.

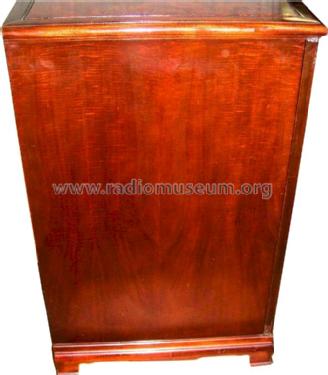

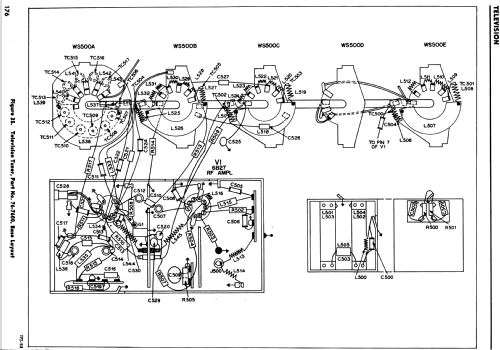

    Uses tuner 76-7600 (channel selector prepared with UHF position), 200 W power consumption, mahogany cabinet with full-size doors.

    The 53-T2270 was available with the following chassis:

    Model RF Chassis Deflection Chassis Code Designation
    53-T2270 91 J-1 Code 126
    53-T2270 91 J-2 Code 128



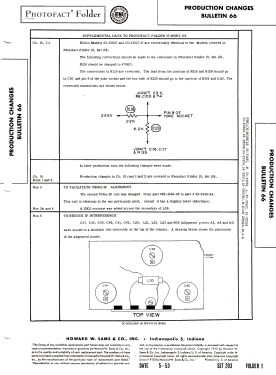

  • Literature/Schematics (1)

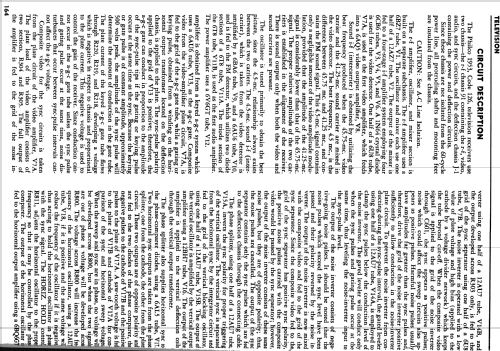

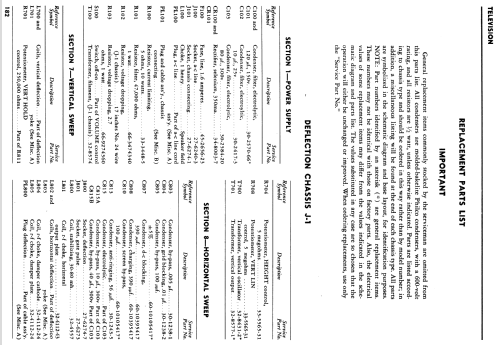

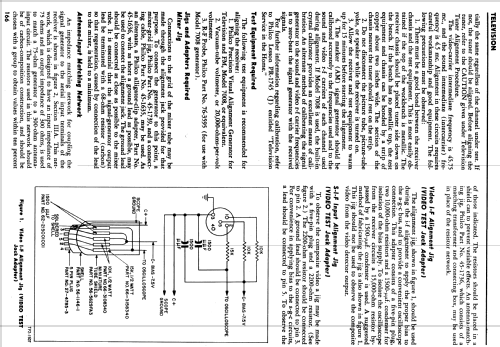

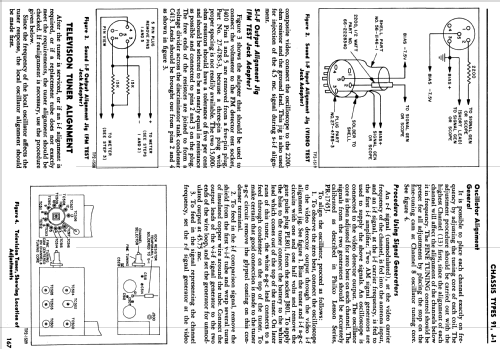

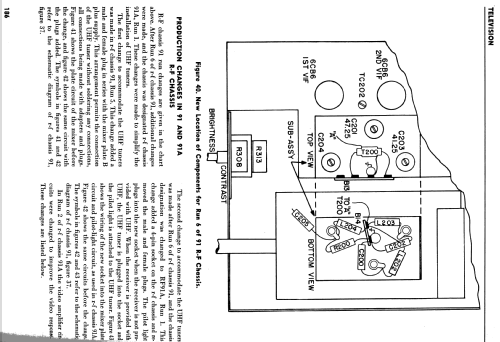

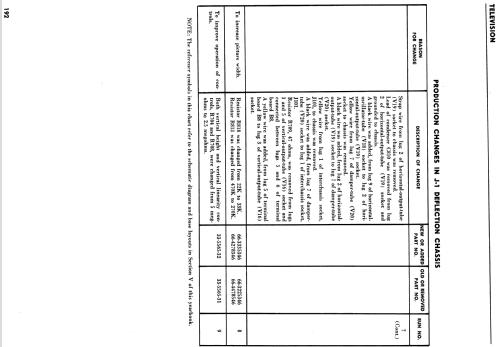

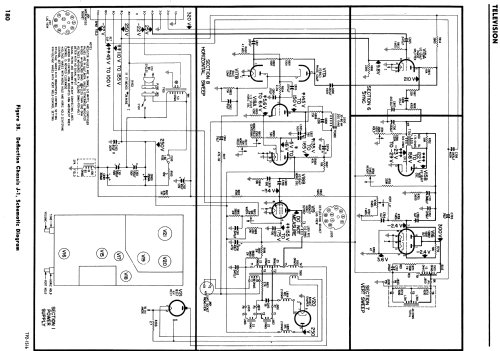

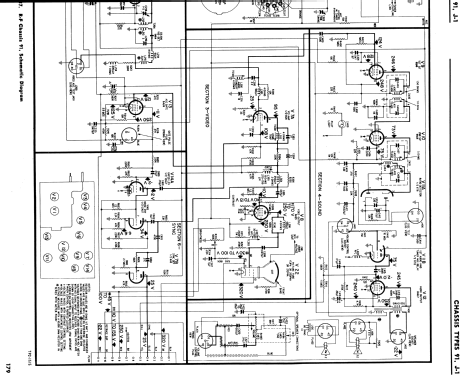

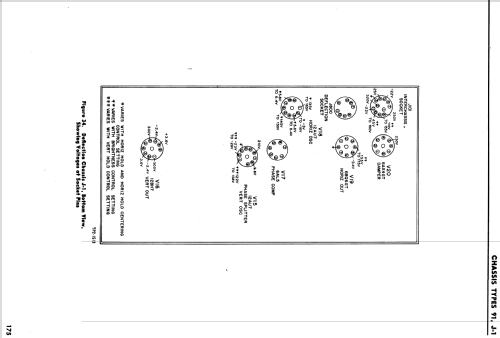

  • - - Manufacturers Literature (Philco Television Yearbook - 1953 Pages 163-192)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
