571 Radio-Phonograph
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1928
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137858

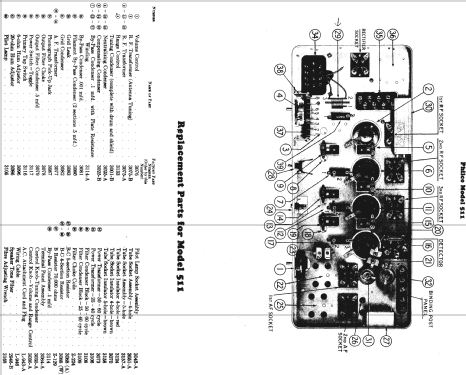

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- TRF without regeneration; Neutrodyne
- Tuned circuits
- 4 AM circuit(s)
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: 571 Radio-Phonograph - Philco, Philadelphia Stg. Batt
- Shape
- Console, Highboy (legs > 50 %).
- Notes
- Model 571 Deluxe Electric Phonograph-Radio Console was part of Philco's first family of radio receivers introduced in 1928. It has a common chassis with all other 1928 Philco radio models. Highboy cabinet, walnut with maple inlay on doors.
- Source of data
- Philco Radio 1928-1942
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Literature/Schematics (1)
- Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
