• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 167291

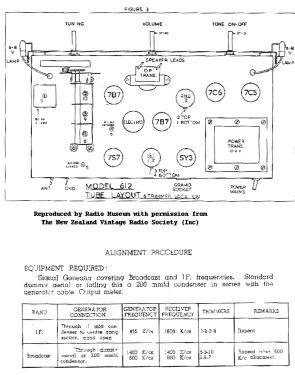

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7B7 7S7 7B7 7C6 7C5 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

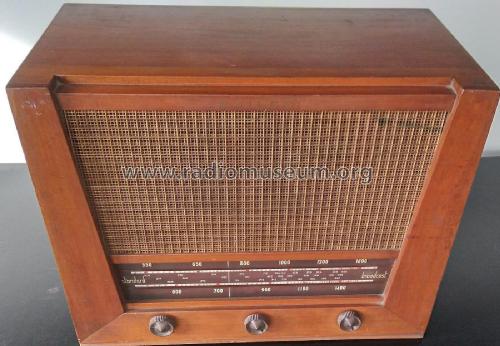

• Model: Philco 612 - Dominion Radio & Electrical

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 460 x 350 x 260 mm / 18.1 x 13.8 x 10.2 inch

• Notes

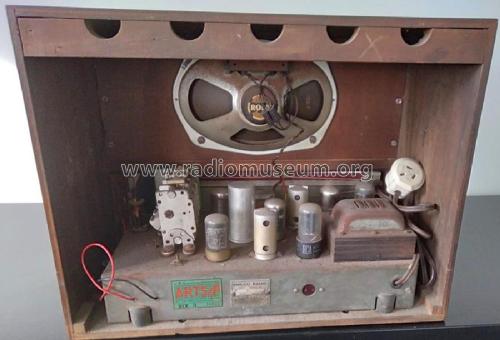

• 6-valve, AC-powered superhet with RF stage.

  Walnut veneered cabinet.

• Price in first year of sale
• 35.60 NZ £

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
