623B (623, 623A) Late

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 51105

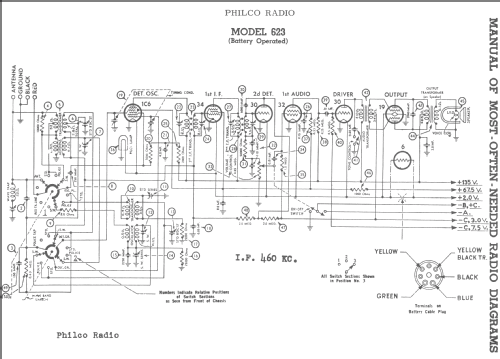

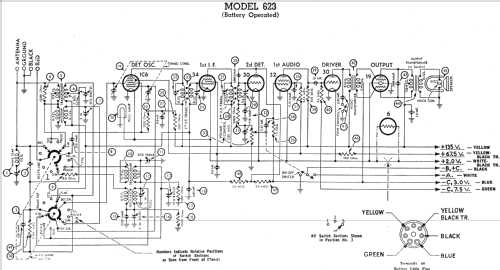

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Storage and/or dry batteries / 135, 67.5, 2, -3, & -7.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 623B [Late] - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 13.7 x 19 x 8.5 inch / 348 x 483 x 216 mm
  • Notes
  • The Philco model 623 series uses a 6-tube 3-band chassis with battery power supply. The standard 623 chassis uses a 2 volt storage battery for the A supply, while the 623A chassis has an additional type 6 ballast tube in series with the A supply for use with a dry A battery (presumably 3 V).

    There are four individual models with different cabinet styles. The early version (1935) of model 623B is a shouldered tombstone. The late version (1936) of 623B is a simple rectangular tombstone with rounded top corners. Model 623F (1935-36) is a floor-type console with a tulip pattern for the speaker opening.
  • Price in first year of sale
  • 60.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference

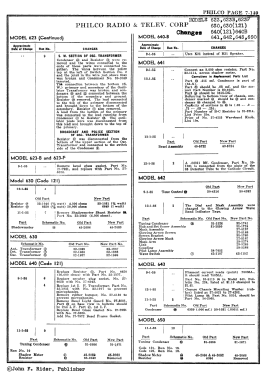

  • Rider's Perpetual, Volume 6 = 1935 and before
  • Literature/Schematics (1)
  • Philco Radio 1928-1942 (Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data)
