630PF Radio-Phonograph
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 51110

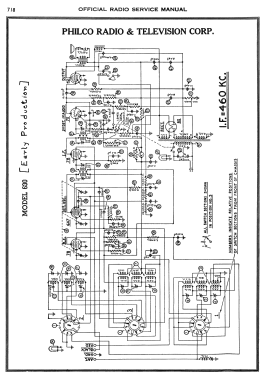

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 630PF Radio-Phonograph - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Notes
- The Philco model 630 series uses a 6-tube 3-band chassis which is very similar to the 620 series, but with shadow meter (tuning aid) added. The bands covered are BC, 1.75-5.8 MHz, and 5.7-18 MHz.
There are four individual models with different cabinet styles. Model 630B is a shouldered tombstone. Model 630X is a console with inclined sounding board and a vase-shaped pattern in the latticework over the speaker opening. Model 630PF is radio-phonograph floor-type console with phonograph under the top lid. Model 630CSX is a chairside with built-in speaker and controls in a T-shaped recess on the top.
The model 635 series (1936), the 37-630 series (1936-37), and the 38-630 series (1937-38) were similar in electrical design, although the later two series had updated tube types and different SW band coverage.
- Price in first year of sale
- 100.00 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Philco Radio 1928-1942
- Literature/Schematics (1)

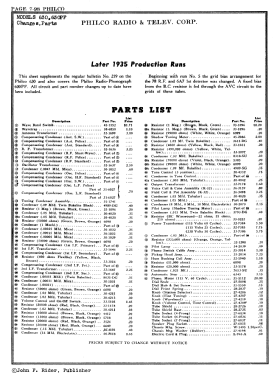

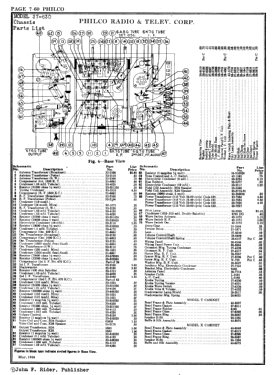

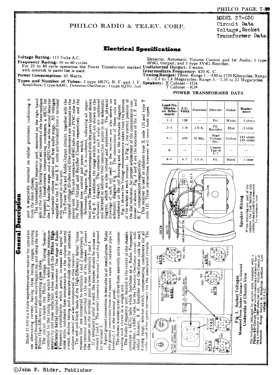

- Philco Service Bulletin # 219; Philco Wiring Diagrams, Parts Lists, and Essential Serv. Data 1928-36
