642B Farm Radio Late
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 141807

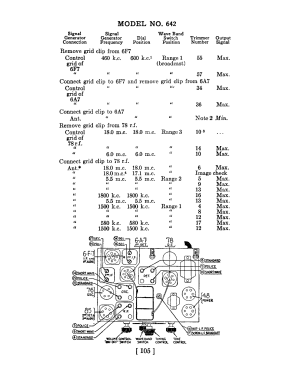

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 642B Farm Radio [Late] - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
- The Philco model 642 series are farm radios based on a 32 VDC 7-tube chassis with three band coverage (BC, 1.75-5.8 MHz, and 5.7-18 MHz). The chassis has no vibrator; 32 VDC is the highest voltage used in the circuit.
There are three models in the series with different cabinet styles: The early version (1935) of model 642B is a shouldered tombstone; the late version (1936) of 642B is simple flat-front tombstone with straight sides and rounded top corners. Model 642F (1935-36) is a floor-type console.
- Price in first year of sale
- 60.00 $
- Source of data
- Philco Radio 1928-1942
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
