- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 140615
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org

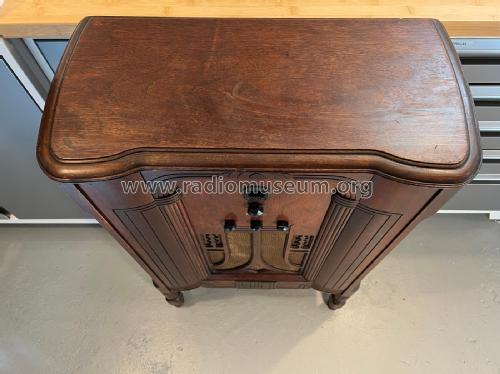

- Model: 66L - Philco, Philadelphia Stg. Batt
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 24.5 x 39.5 x 11.5 inch / 622 x 1003 x 292 mm
- Notes
- The Philco model 66 series models use a 5-tube 2-band chassis covering the BC band and SW (5.5 - 16 MHz). There were four individual models in the series with different cabinet styles.
The early version (1934) of the 66B table radio was a rectangular tombstone with a single vertical bar through the center of the speaker opening and two downward facing arcs at the bottom of the speaker opening surrounding the tuning dial. The late version (1934-35) of the 66B was a cathedral with rounded top and a webbed oval speaker opening.
Model 66S (1935) was another rectangular tombstone having a lyre-shaped speaker opening with four vertical bars through its center.
Model 66L (1935) was a lowboy with an inverted "Y" bar through the center of its speaker opening and other embellishment.
- Net weight (2.2 lb = 1 kg)
- 40 lb (40 lb 0 oz) / 18.160 kg
- Source of data
- Philco Radio 1928-1942
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Literature/Schematics (1)
- Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
- Other Models
-
Here you find 4073 models, 2222 with images and 3721 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
