71LZ (71, 71A, 71E)
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 51138

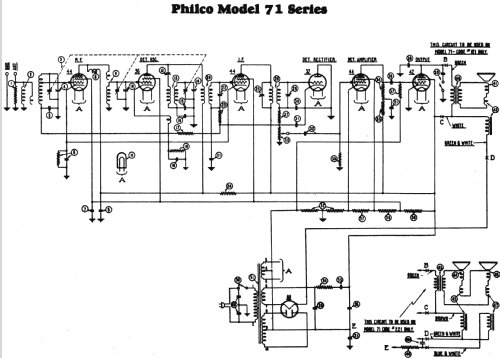

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 260 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 71LZ - Philco, Philadelphia Stg. Batt
- Shape

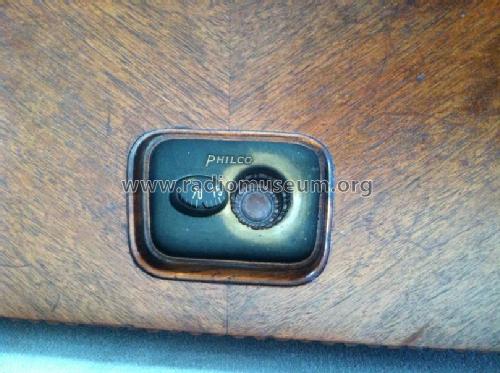

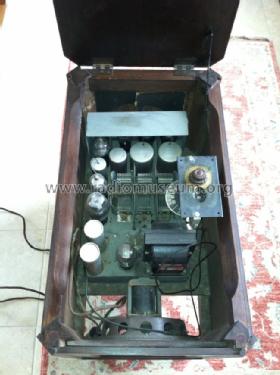

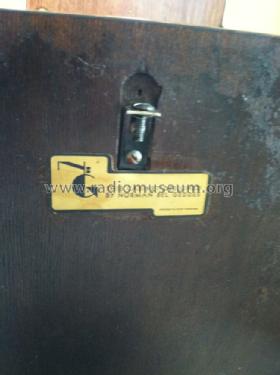

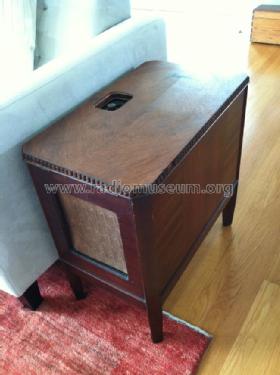

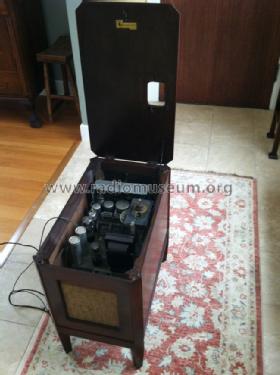

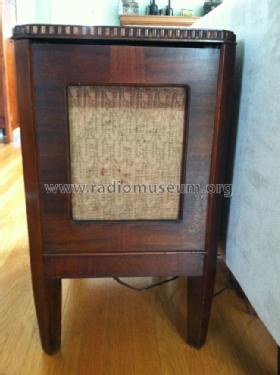

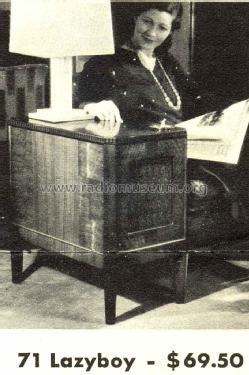

- Console: Chairside Radio.
- Notes
-

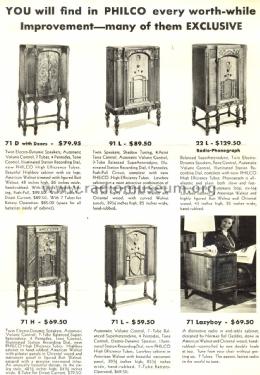

The model 71 series had many variations. There were seven cabinet styles, as indicated by the suffix of the main model number: 71B is a cathedral (sometimes called "Baby Grand"), 71L is a lowboy, 71H is a highboy, 71D is a highboy with dual-speakers and doors, and 71X is a console with inclined sounding board, 71LZ is a chairside (cabinet similar to 370 chairside), and there is also a 71 Grandfather clock. The single speaker versions use a code 121 chassis, and the dual speaker 71D uses a code 221 chassis. Power supply requirements are indicated by the chassis type, with 71 for 115 VAC 50-60 Hz, 71A for 115 VAC 25-40 Hz, and 71E for 230 VAC 50-60 Hz. Late versions (1933) included a shadow meter (tuning aid).
- Price in first year of sale
- 69.50 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Mentioned in
- Philco Radio 1928-1942
- Literature/Schematics (1)
- Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
- Literature/Schematics (3)
- Philco Folder Form. 2952.
