- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167367

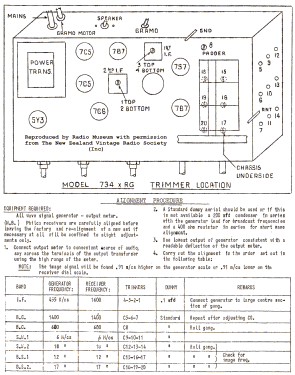

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10 inch = 25.4 cm
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Philco 734 - Dominion Radio & Electrical
- Shape
- Console with any shape - in general
- Notes
-
7-valve, triple band superhet with RF stage & bandspread tuning.
Push-pull audio output.
Collaro RC49 record changer.The console cabinet is imported Maple wood.
This model appears in a list compiled by John Stokes during his research into the history of New Zealand radio.
See also Model 736
- Price in first year of sale
- 98.50 £
- Mentioned in
- -- Original prospect or advert (Otago Daily Times 8 March 1950 Page 2)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
