• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1930/1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51151

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 24 24 24 27 45 45 80

• Main principle
• TRF without regeneration; Screengrid 1926-1935

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

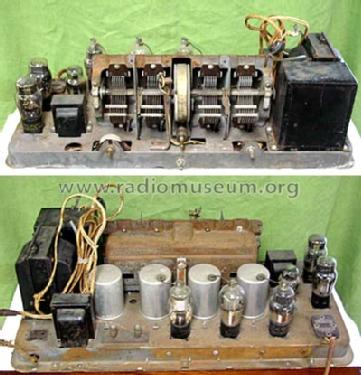

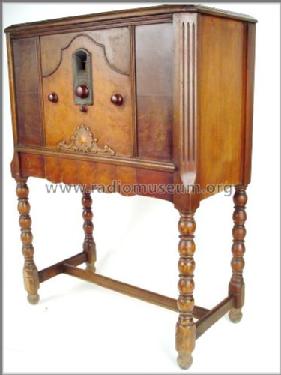

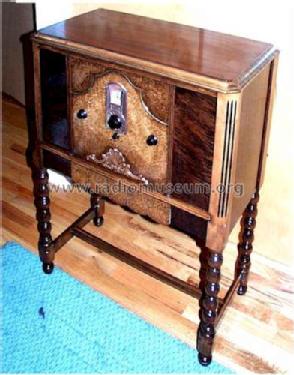

• Model: 77 Console - Philco, Philadelphia Stg. Batt

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• Model 77 was available in a table, a console (actually small highboy), and a lowboy cabinet. Model 77A is similar, but with minor circuitry changes. One dial (primary tuning control knob).

• Price in first year of sale
• 95.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

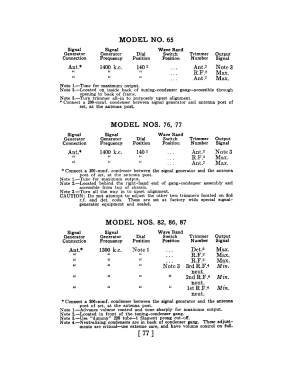

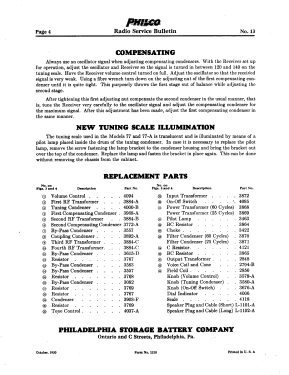

• Literature/Schematics (1)
• Philco Radio 1928-1942 (Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data)
