- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1935/1936
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 51165
Click on the schematic thumbnail to request the schematic as a free document.

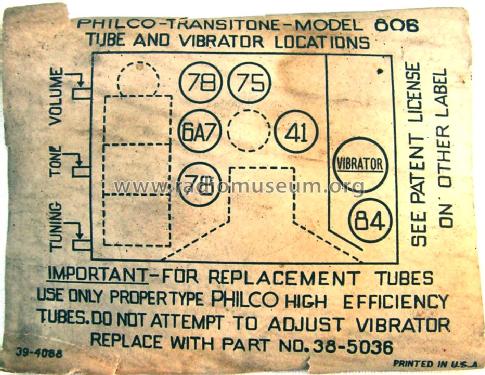

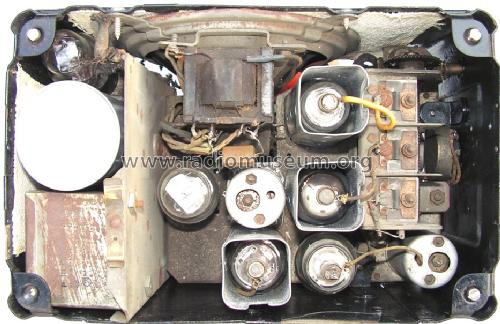

- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 260 kHz; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org

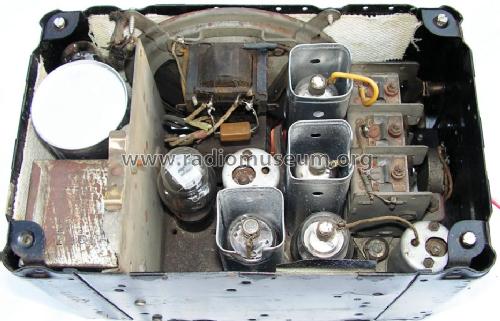

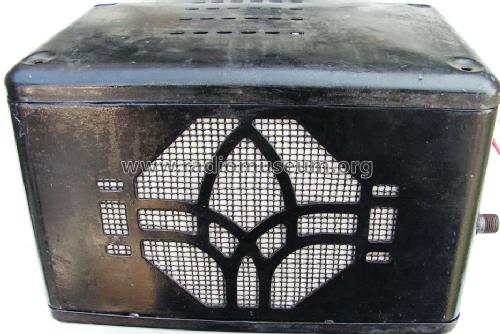

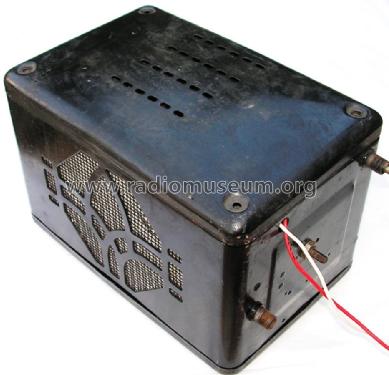

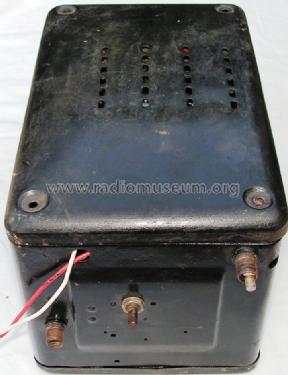

- Model: 806 - Philco, Philadelphia Stg. Batt
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 275 x 185 x 180 mm / 10.8 x 7.3 x 7.1 inch
- Notes

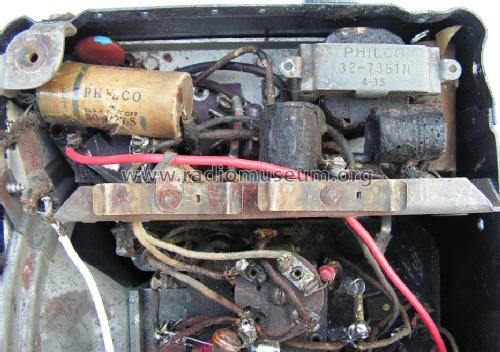

- This radio is equipped with a vibrator for the generation of B+.
- Net weight (2.2 lb = 1 kg)
- 8.3 kg / 18 lb 4.5 oz (18.282 lb)
- External source of data
- Ernst Erb

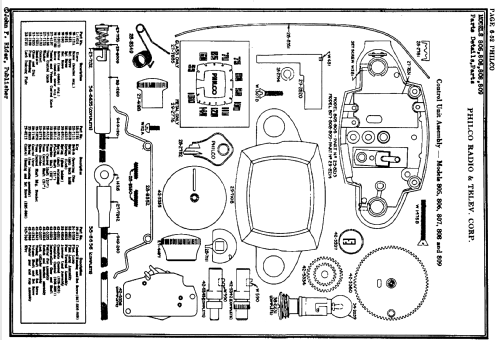

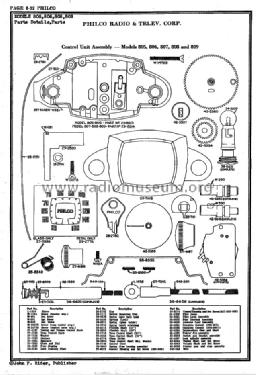

- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
