• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1932/1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138911

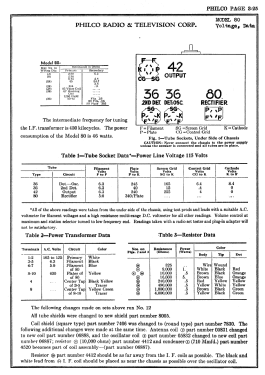

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 36 36 42 80

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 80P - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes
• The 80 series models were referred to as "Philco Junior" and were inexpensive entry-level radios employing a superheterodyne circuit with a regenerative stage to increase gain in the absence of an IF amplifier stage. Model 80B is a cathedral (with low-cost flat front), 80C is a compact rectangular wooden tabletop model, 80P is a plug-in "portable" (Philco's first "portable" radio, but not for battery operation), and there is also an 80 Colonial clock.

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)
• Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data

• Author
• Model page created by Thomas Albrecht. See "Data change" for further contributors.
