• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 93623

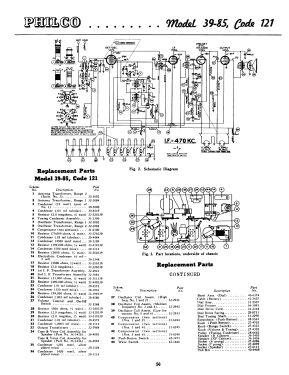

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage and/or dry batteries / 90 & 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 39-85B - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 17.4 x 17.4 x 9.56 inch / 442 x 442 x 243 mm
  • Circuit diagram reference
  • Rider's Perpetual, Volume 11 = ca. 1940 and before
  • Literature/Schematics (1)
  • Philco dealers promotion radio sales, 1941
  • Author
  • Model page created by Vitor Oliveira. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model 39-85B is part of the collections of the following members.
