- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 210751

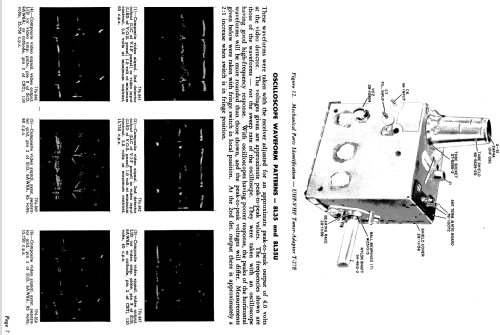

Picture from Philco datasheet
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: 8L35U - Philco, Philadelphia Stg. Batt
- Shape
- Chassis only or for «building in»
- Notes
- The Philco 8L35U is a chassis for 21" b/w TV's with US standard VHF Tuners channels 2 thru 13, 14 thru 83 UHF. Used in various "F" line Philco TV's.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
