- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 211247

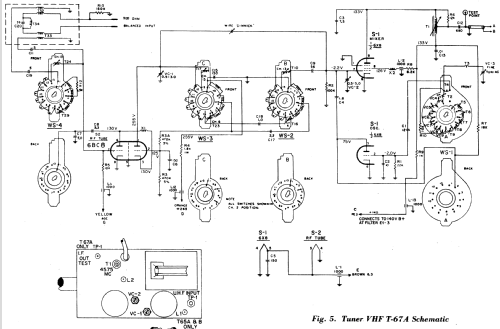

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6X8 6BC8 6AF4A 6AM8 6DE6 6DE6 6CM6 12BR7 12AU7A 12AU7A 6AQ5 6U8 6AQ5 6AV6 6AL5 6BY8 5U4GB 1B3GT 6DQ6GTA 6AX4GT 21BSP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 8L71U - Philco, Philadelphia Stg. Batt
- Shape
- Chassis only or for «building in»
- Notes
- The Philco 8L71U is a chassis for 21" b/w TV's with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Used in various "F" line Philco TV's. Uses VHF tuner T-67A, UHF tuner T-27 or UT-2A and picture tube 21BSP4.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
