• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51253

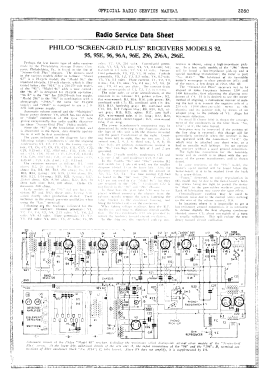

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 24 24 24 27 27 27 45 45 80

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: 96 [Chassis w/o cabinet] - Philco, Philadelphia Stg. Batt

• Shape
• Chassis only or for «building in»

• Notes
• One dial (primary tuning control knob)

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
