- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 211602

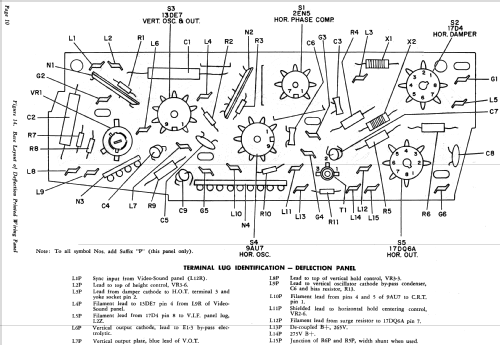

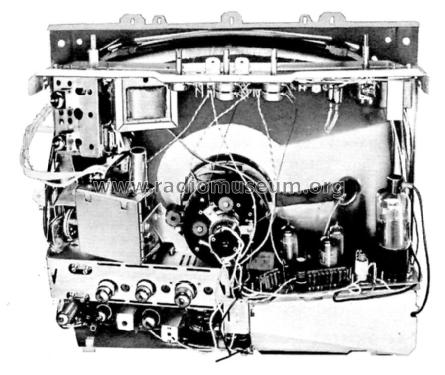

Picture from Philco datasheet.

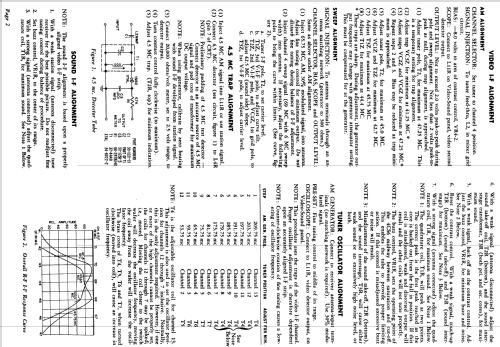

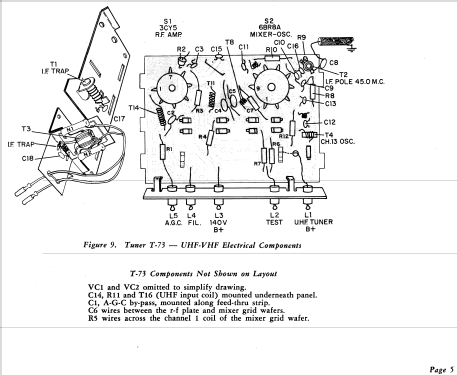

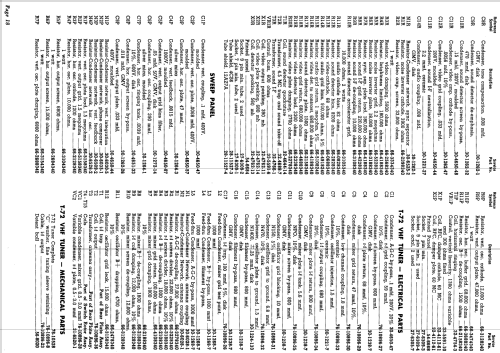

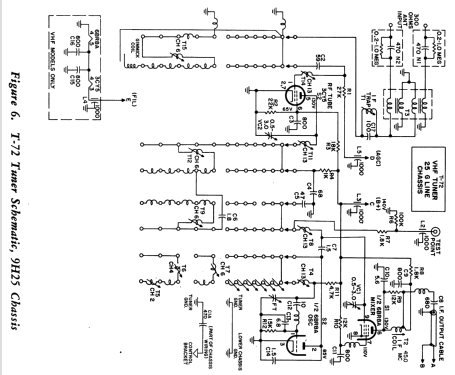

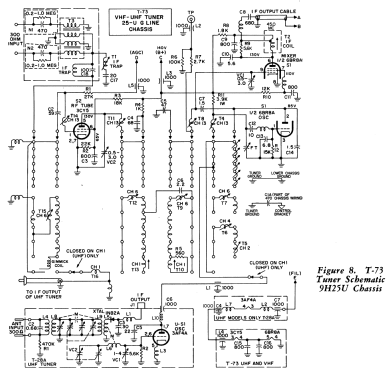

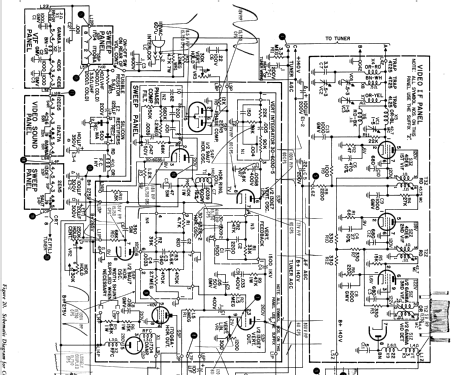

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BR8A 3CY5 3AF4A 6AM8A 4DE6 4DE6 8AW8A 12AZ7A 4CS6 12ED5 2EN5 17D4 13DE7 9AU7 17DQ6A 1G3GT 17DAP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 9H25U - Philco, Philadelphia Stg. Batt
- Shape
- Chassis only or for «building in»
- Notes
- The Philco 9H25U is a chassis for 17" b/w TV's with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Used in various "G" line Philco TV's. Uses VHF tuner T-73, UHF tuner T-28A and picture tube 17DAP4.
