• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51260

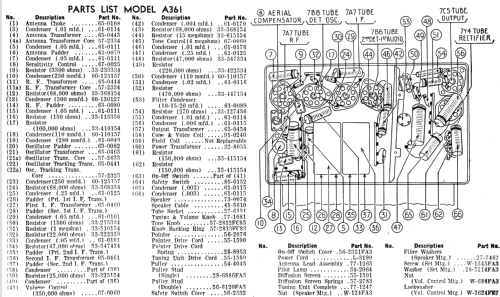

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7A7 7B8 7A7 7B6 7C5 7Y4

• Main principle
• Superhet with RF-stage; ZF/IF 265 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

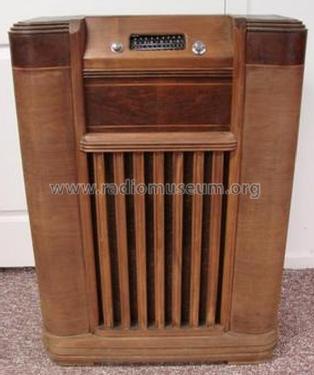

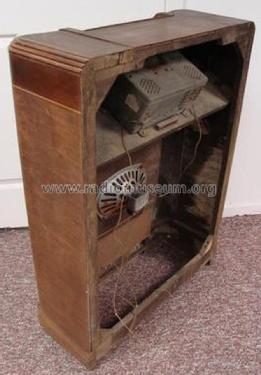

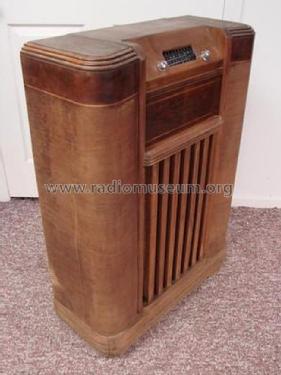

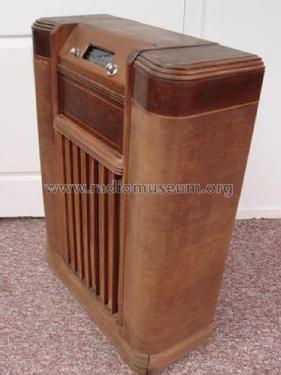

• Model: A361 - Philco, Philadelphia Stg. Batt

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 26.5 x 37 x 11 inch / 673 x 940 x 279 mm

• Notes
• According to Ramirez, model A361 is one of very few new models introduced by Philco in early 1942 (after U.S. entrance into WWII). This radio, intended for home use with AC power, is based on a car radio chassis.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Literature/Schematics (1)
• Philco 1942 RMS Year Book

• Other Models

• Here you find 4041 models, 2218 with images and 3690 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
