• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philco Radio & Television Corp. of Great Britain Ltd.; London

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345106

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8G 6K7G 6Q7G 6V6G 5Z4G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100/120; 200/250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 4.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

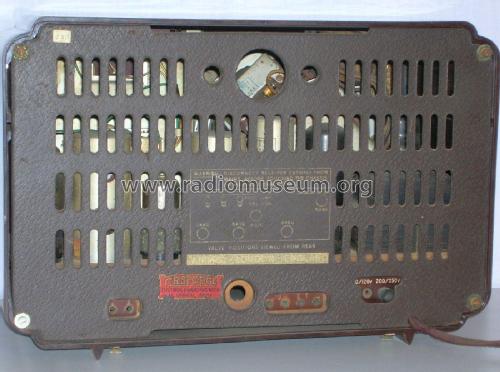

• Model: A535B Mklll - Philco Radio & Television Corp

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 15 x 10 x 7 inch / 381 x 254 x 178 mm

• Notes

• Tuning Ranges:

  • SW  6 ... 18 MHz
  • MW 1500 ... 545,4 kHz
  • LW  320 ... 140 kHz

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
