A-T2266 Ch= 91A, J-2 Code 128
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1953
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 254827
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6BQ7 or 6BZ7 12AZ7 6CB6 6CB6 6CB6 6CB6 6U8 6AQ5 6BA6 6AU6 6T8 6V6GT 6AU6 12AU7 12AU7 12BH7 6AL5 12AU7 6BQ6GT 6AX4GT 1B3GT 21EP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- from Radiomuseum.org
- Model: A-T2266 Ch= 91A, J-2 [Code 128] - Philco, Philadelphia Stg. Batt
- Notes
-
The Philco A-T2266 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with RF chassis 91A, Deflection chassis J-2 and picture tube 21EP4A.
- Literature/Schematics (1)

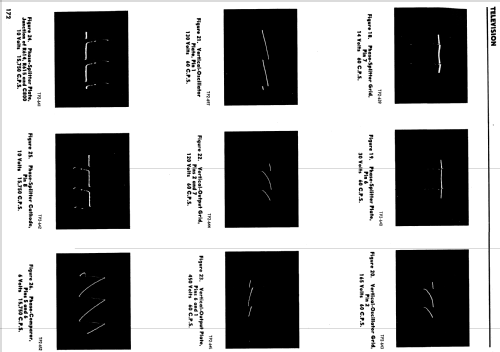

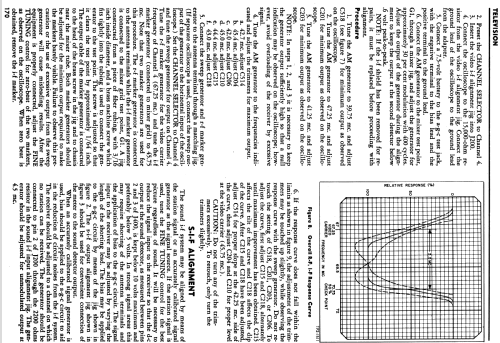

- - - Manufacturers Literature (Philco Television Yearbook - 1953 Pages 163-192)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
