• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1941

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 51282

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 7A7 7B8 7A7 7B6 7A4 7C5 7C5 7Y4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: AR-75 - Philco, Philadelphia Stg. Batt

• Notes
• This model is equipped with a vibrator for the generation of B+.

• External source of data
• Ernst Erb

• Circuit diagram reference

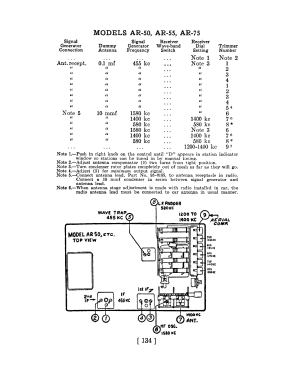

• Rider's Perpetual, Volume 13 = 1942 and before

• Literature/Schematics (1)
• Philco 1941 RMS Year Book

• Other Models

• Here you find 4041 models, 2217 with images and 3690 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
