- Country
- Brazil
- Manufacturer / Brand
- Philco Rádio e Televisão; São Paulo
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153203

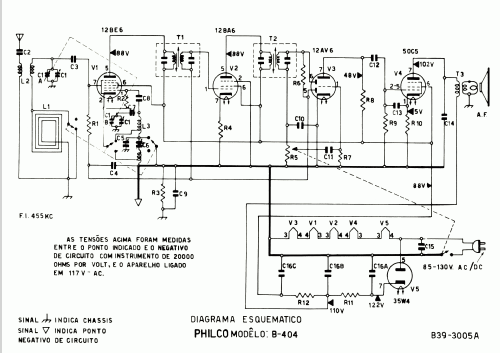

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 85-130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: B-404 - Philco Rádio e Televisão; São
- Source of data
- -- Schematic
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
