- Country
- Brazil
- Manufacturer / Brand
- Philco Rádio e Televisão; São Paulo
- Year
- 1954 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177744

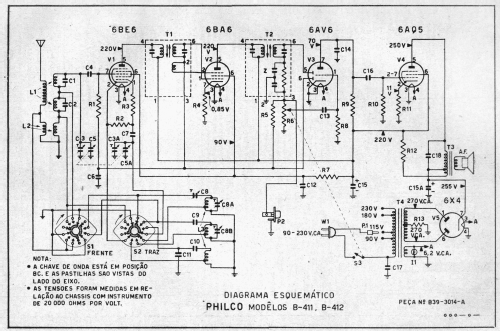

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 90-230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: B-411 - Philco Rádio e Televisão; São
- Shape
- Tablemodel, with any shape - general.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Meyer Rochwerger. See "Data change" for further contributors.
- Other Models
-
Here you find 40 models, 24 with images and 28 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philco Rádio e Televisão; São Paulo
