C-1908 Chrysler
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1941/1942
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 51317
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: C-1908 Chrysler - Philco, Philadelphia Stg. Batt
- Notes
- Car radio designed for Chrysler, DeSoto, Dodge, and Plymouth automobiles. This model is equipped with push button tuning and a vibrator for the generation of B+.
- External source of data
- Ernst Erb

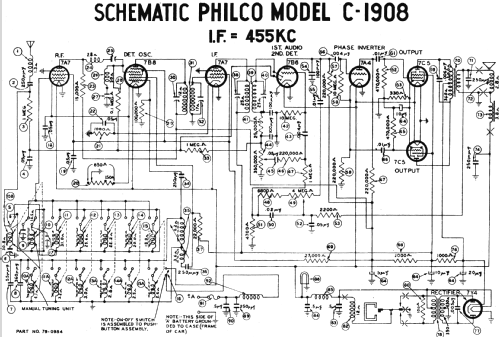

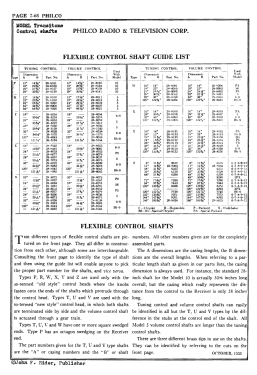

- Circuit diagram reference

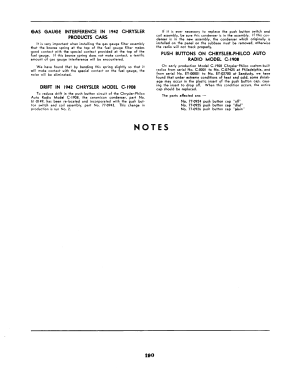

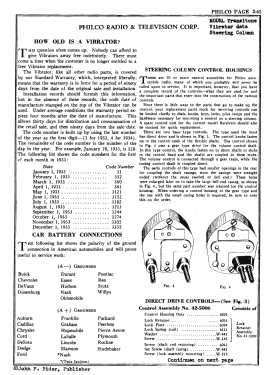

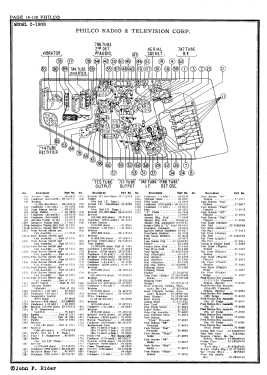

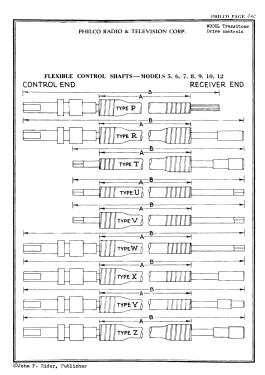

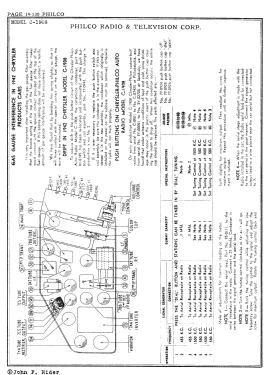

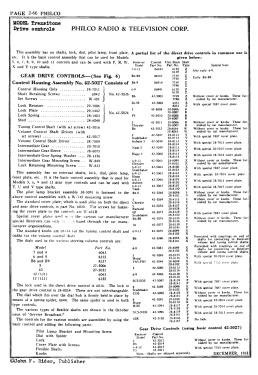

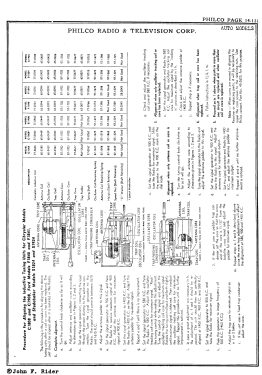

- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Literature/Schematics (1)
- Philco 1942 RMS Yearbook
- Other Models
-
Here you find 4086 models, 2222 with images and 3734 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Forum contributions about this model: Philco, Philadelphia: C-1908 Chrysler
Threads: 1 | Posts: 5
Good evening all,
I am restoring this car radio, and I encounter a strange problem. The second IF transformer resonates at approx 650kHz, instead of the 455 kHz.
I opened the transformer, and I discovered a series resistor, marked 25kOhm; but measured 35.8 kOhm.
But i suspect the trimming capacitors (mica). But I wonder how it can detune the circuits so much, from 455 kHz to approx 650 kHz.
Who can help?
Best regards
Attachments
- IF transformer in housing (75 KB)
- View with the ceramic mica trimmers (85 KB)
- View with series resistor (86 KB)
Georges Van Campenhout † 28.4.22, 20.Oct.06
