- Country
- Canada
- Manufacturer / Brand
- Philco Products Ltd.; Toronto
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 306438

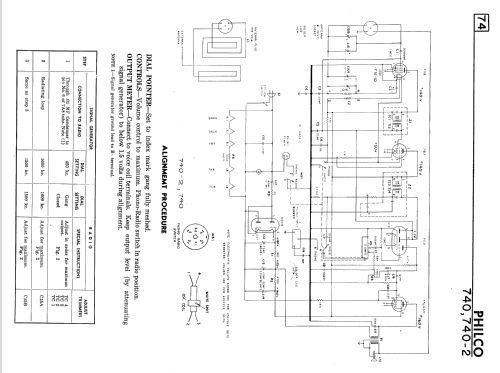

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3 W (unknown quality)
- from Radiomuseum.org
- Model: 740 - Philco Products Ltd.; Toronto
- Notes
-
The Canadian Philco model 740 is a 5-tube radio with built-in phonograph. Same model but for 25 Hz operation see Philco 740-2.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 27)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
