- Country
- Canada
- Manufacturer / Brand
- Philco Products Ltd.; Toronto
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323817
Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x AA 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
- Power out
- 0.025 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T-500 - Philco Products Ltd.; Toronto
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-

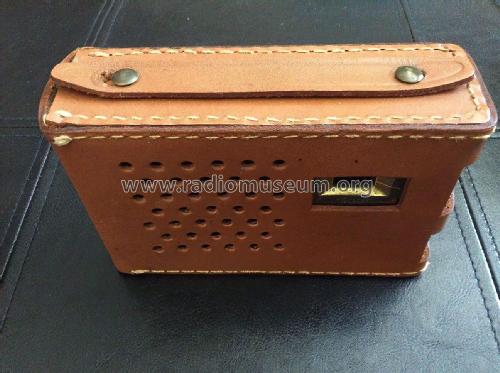

This is the second model of transistor radio produced by Philco. The Canadian version of the T-500 was completed in Toronto, Ontario in Canada. These pocket radios had a leatherette carrying case but that was an option.
See also USA model T-500.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1958-59 Supplement 45 Page 54,55)
- Author
- Model page created by Stan Marlin. See "Data change" for further contributors.
