• Country
• Canada

• Manufacturer / Brand
• Philco Products Ltd.; Toronto

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 259097

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 35C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

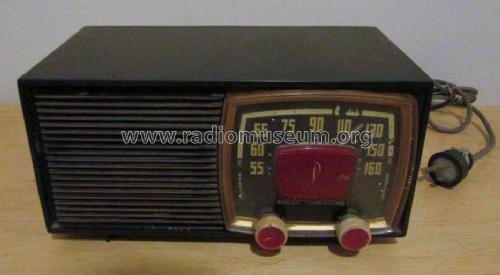

• Model: Transitone 164 - Philco Products Ltd.; Toronto

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.5 x 6.5 x 7 inch / 318 x 165 x 178 mm

• Notes

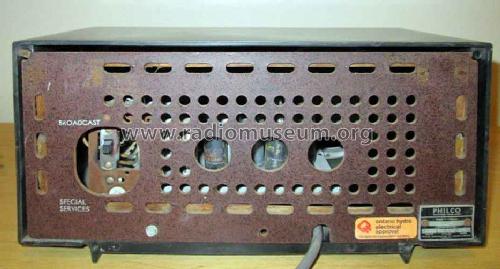

• Has BC / Special Services (SW) switch on rear panel.
  Same schematic as Canadian Philco 162 and 163.

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
