• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1933 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 248556

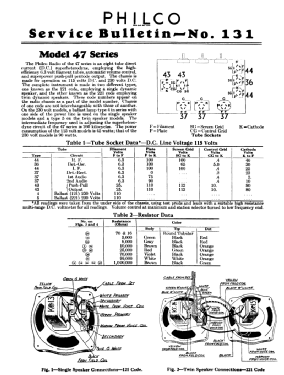

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 44 36 44 37 37 37 43 43

• Main principle
• Superhet with RF-stage; ZF/IF 260 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Direct Current supply (DC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org

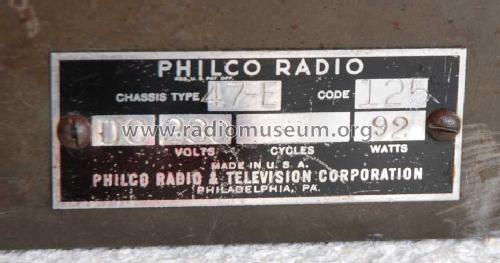

• Model: Chassis ch= 47-E Code 125 - Philco, Philadelphia Stg. Batt

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 360 x 230 x 250 mm / 14.2 x 9.1 x 9.8 inch

• Notes

• Export.

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
