C-1452 Transitone Chrysler
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1936–1938
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 51310

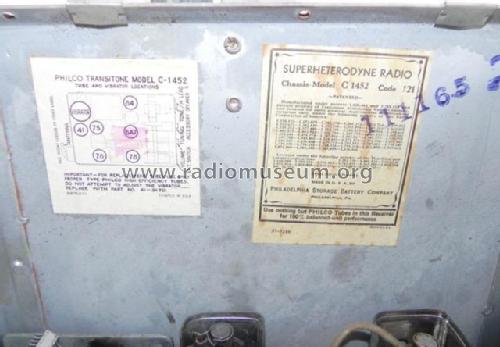

With courtesy from Ebayseller cfgeintz.
With courtesy from Ebayseller cfgeintz.
Bedienteil
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 260 kHz; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: C-1452 Transitone Chrysler - Philco, Philadelphia Stg. Batt
- Shape
- Chassis only or for «building in»
- Notes
-
Th model C-1452 from Philco is equipped with a vibrator for the generation of B+. It has Philco code 121. There are different control panels possible. This one here is for Chrysler. See also the same model C-1452 for 1938 Dodge and 1938 Plymouth passenger cars. There are also very similar other models - like for instance C-1550 with a tube 42 instead of 41.
- External source of data
- Ernst Erb
- Literature/Schematics (1)
- Rider's Perpetual, Volume 8 = 1937 and before (Philco Section, page 8-147)
