• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philco Radio & Television Corp. of Great Britain Ltd.; London

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105930

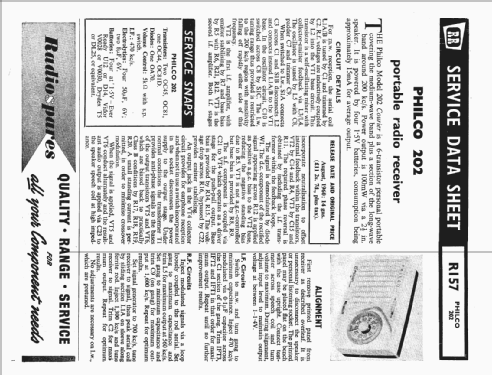

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OA70 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Courier 202 - Philco Radio & Television Corp

• Dimensions (WHD)
• 150 x 100 x 45 mm / 5.9 x 3.9 x 1.8 inch

• Notes
• Self-oscillating mixer stage.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 15.00 £

• Source of data
• - - Data from my own collection

• Other Models

• Here you find 256 models, 157 with images and 130 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philco Radio & Television Corp. of Great Britain Ltd.; London
