• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1951 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 101451

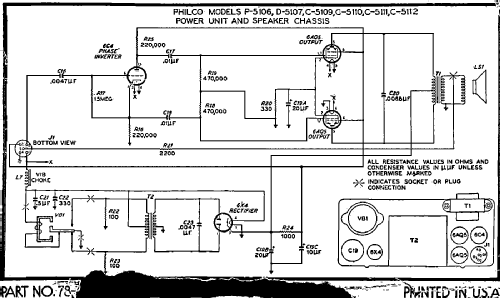

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AV6 6C4 6AQ5 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios)

• from Radiomuseum.org
• Model: D-5107 - Philco, Philadelphia Stg. Batt

• Notes
• This model is equipped with a vibrator VB100 for generation of B+.

• Literature/Schematics (1)
• Philco Service Auto Radio 1946-1953

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
