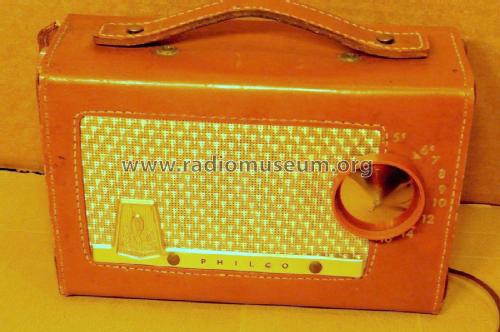

D-655 Code 123 Veradera Sand
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 91601
Philco D655-123 Sportster ad October 1955
Sportster chassis with new capacitors
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 117; (2 × 1.5 / 75) Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Power out
- 1.6 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: D-655 Code 123 [Veradera Sand] - Philco, Philadelphia Stg. Batt
- Shape
- Portable set > 8 inch (also usable without mains)
- Mentioned in
- Philco Factory-Supervised Service Home Radio 1955
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-56, Set 311, Folder 12)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
