• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354846

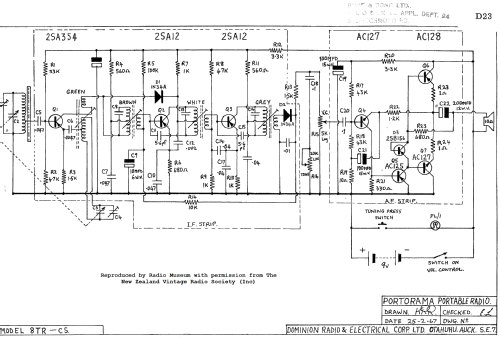

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA354 2SA12 2SA12 AC127 AC125 AC128 AC127 2SB156

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Dreco Portorama 8 Transistor CS1 - Dominion Radio & Electrical

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• 8-transistor broadcast (MW) portable transistor radio using Rola 6 x 4 elliptical speaker and Eveready No. 765 9V battery.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
