- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1956 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 83033

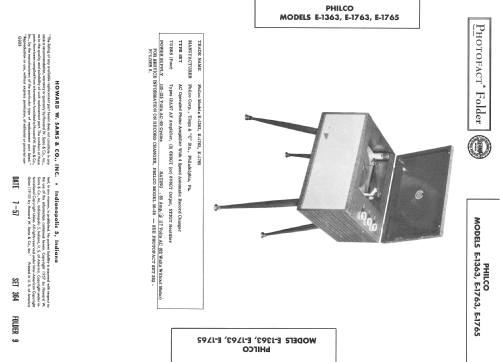

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer); Loudspeaker + integr.Amplifier
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: E-1765 - Philco, Philadelphia Stg. Batt
- Shape
- Console, Highboy (legs > 50 %).
- Notes
-
Philco model E-1765 is an AC Operated Phono Amplifier With 4 Speed Automatic Record Changer.Push-pull output stage.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 17, 1957
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 364 Folder 9 dated 7-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
