• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1956

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 83035

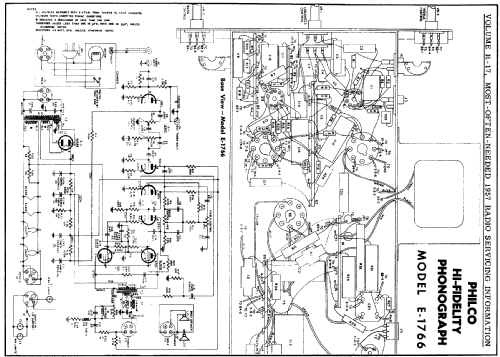

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AX7 12AX7 6L6GB 6L6GB 5U4GB

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 inch = 38.1 cm

• Power out
• 30 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

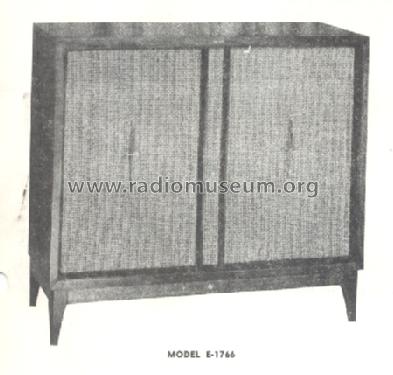

• Model: E-1766 [Fruitwood] - Philco, Philadelphia Stg. Batt

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• Push-pull output stage. 2 Speakers: 15" PM, voice coil impedance of 8 ohms.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957

• Literature/Schematics (1)
• Philco Factory-Supervised Service Home Radio 1956

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
