• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83020

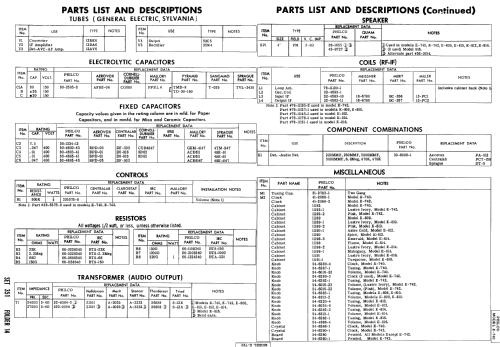

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

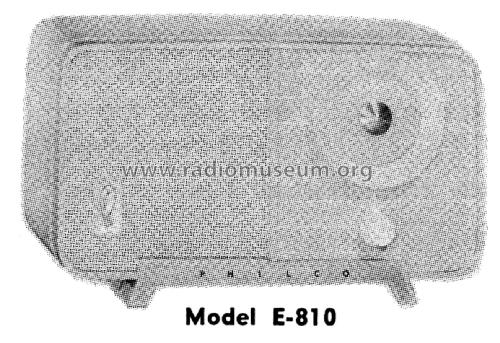

• Model: E-810 [Lustre Ivory cabinet color] - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The Philco E-810 is an AC/DC operated 5 tube BC band receiver.  The BC band frequency tuning range is 540 - 1620kHz.  Has Qty(1) PM 4" speaker and loop antenna mounted on the inside of the back panel.

  The following models use the same schematic and circuit board:

  Model	Clock	Dial Light	Cabinet Color
  E-740	Yes	No	Not Known
  E-742	Yes	No	Lustre Ivory
  E-742	Yes	No	Pink
  E-808	No	No	Not Known
  E-810	No	No	Lustre Ivory
  E-810	No	No	Pink
  E-812	No	No	Aztec Gold
  E-812	No	No	Spice
  E-814	No	Yes	Emerald
  E-814	No	Yes	Flame
  E-814	No	Yes	Lustre Ivory
  E-814	No	Yes	Mahogany
  E-816	No	Yes	Lustre Ivory
  E-816	No	Yes	Turquoise



• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 351, Folder 14, Date 3-57)

• Literature/Schematics (1)
• - - Manufacturers Literature (Philco Service Manual PR-3034 Dated 1956)

• Literature/Schematics (2)
• Beitman Radio Diagrams, Vol. 17, 1957 (Page 96, 97)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
