• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83025

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BE6 12BA6 12AV6 25F5 25F5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: E-818 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes

• Philco model E-818 is an AC-DC operated AM receiver.Two 4" x 6" PM elliptical speakers.

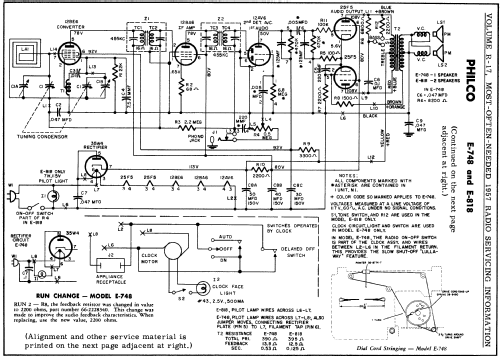

• Circuit diagram reference

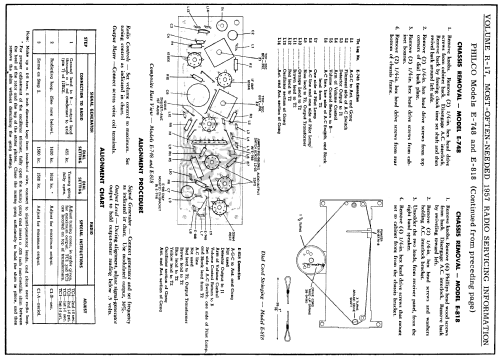

• Beitman Radio Diagrams Vol. 17, 1957

• Literature/Schematics (1)

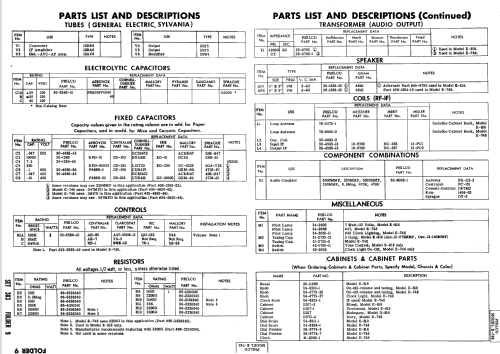

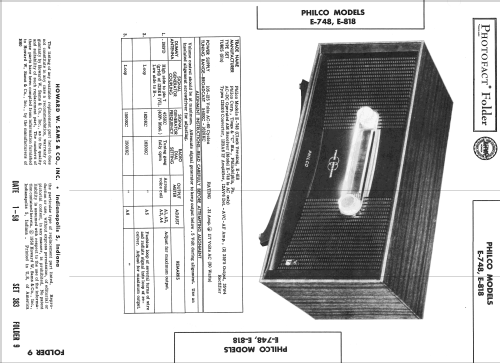

• Photofact Folder, Howard W. SAMS (Date 1-58, Set 383, Folder 9)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
