F-673-124 Lady Fair

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 240473

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 7.5 & 90; AC/DC 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: F-673-124 Lady Fair - Philco, Philadelphia Stg. Batt
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 240 x 150 x 110 mm / 9.4 x 5.9 x 4.3 inch
  • Notes

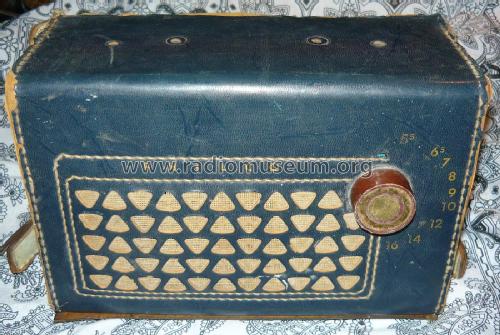

  • Philco Portable 4-Tube AM Radio Model F673-124.
    Power Consumption 15 Watts.
    A-Battery Type P31
    B-Battery Type P176.


  • Net weight (2.2 lb = 1 kg)
  • 3 lb 0 oz (3 lb) / 1.362 kg
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
