• Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 84511

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.9 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: F-1406 [Code 124] - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 19 x 15 x 9 inch / 483 x 381 x 229 mm
  • Notes

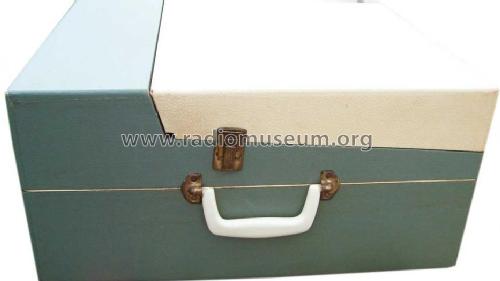

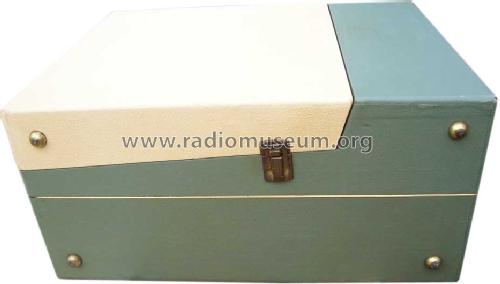

  • The Philco F-1406 is an AC operated 5 tube portable AM Receiver with Phono Amplifier and 4 speed Record Changer. Cabinet color is Green and Ivory. AM Band Tuning Range: 540 to 1620KHz. Uses Record Changer M-40. Record Changer speeds are 16, 33-1/3, 45 and 78 RPM. This model has Qty(1) 4" PM speaker.
  • Net weight (2.2 lb = 1 kg)
  • 18 lb (18 lb 0 oz) / 8.172 kg
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 18, 1958
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
