- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1958
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 84523

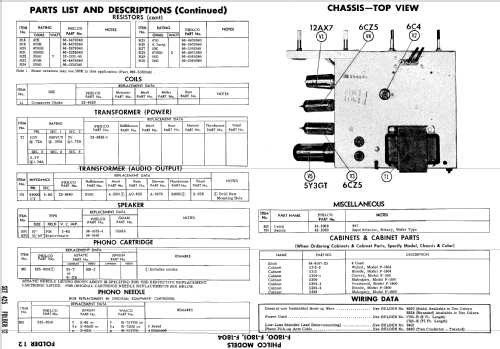

Picture from Philco datasheet
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 15 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: F-1801 - Philco, Philadelphia Stg. Batt
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Philco Model F-1801 is an AC operated 5 Tube Phono Amplifier with push-pull output stage and a 4 Speed Record Changer. Uses Record Changer M-39 with speeds of 16-2/3, 33-1/3, 45 and 78 RPM. 7", 10" and 12" records may be intermixed and there is an automatic shut-off feature that turns off the entire record player at the end of the last record. This model has Qty(1) 10" PM woofer and Qty(1)electrostatic tweeter. Cabinet is Cherry or Mahogany.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 18, 1958
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 12-58, Set 425, Folder 12)
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
