• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1935

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 51377

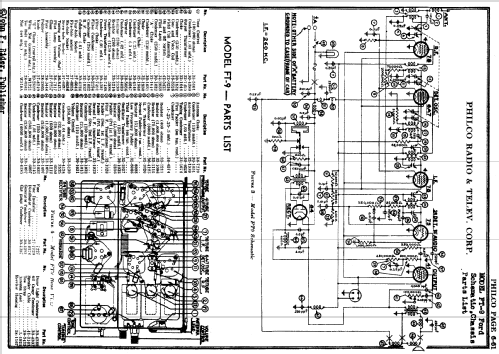

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 78 6A7 78 75 41 84

• Main principle
• Superhet with RF-stage; ZF/IF 260 kHz; 2 AF stage(s)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org

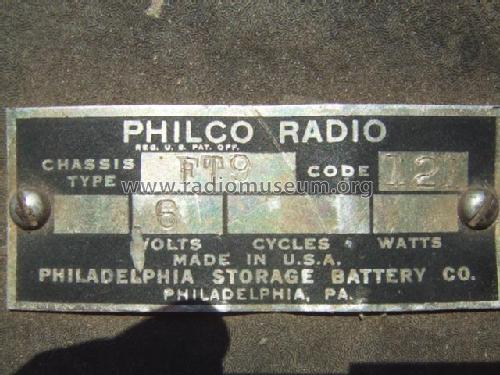

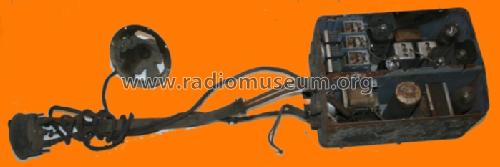

• Model: FT-9 Ford - Philco, Philadelphia Stg. Batt

• Dimensions (WHD)
• 305 x 160 x 190 mm / 12 x 6.3 x 7.5 inch

• Notes
• This model is equipped with a vibrator for the generation of B+.

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before
