G-1606S Code 123
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1958/1959
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 72221
Picture from Philco datasheet
Philco Advertise 1959

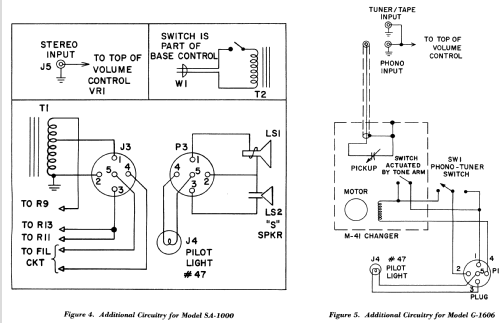

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: G-1606S Code 123 - Philco, Philadelphia Stg. Batt
- Shape
- Console, Highboy (legs > 50 %).
- Dimensions (WHD)
- 20.25 x 9.25 x 19.5 inch / 514 x 235 x 495 mm
- Notes
-
The Philco Model G-1606S is an AC operated 4 Tube Phono Amplifier and a 4 Speed Record Changer. Uses Record Changer M-41 with speeds of 16-2/3, 33-1/3, 45 and 78 RPM. This model has Qty(1) 6" PM woofer and Qty(1) type "S" electrostatic speaker. Cabinet is Blonde or Mahogany. The G-1606S is similar to the Philco model G-1606 except the function switch has a stereo position and the M-41 record changer has a stereo cartridge. Adding the separate Philco model SA-1000 (Slave amplifier and speakers) completed other stereo channel.
- Source of data
- Beitman Radio Diagrams, Vol. 19, 1959
- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (3)
- Philco Folder AD-1793 for 1959.
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
