- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72233

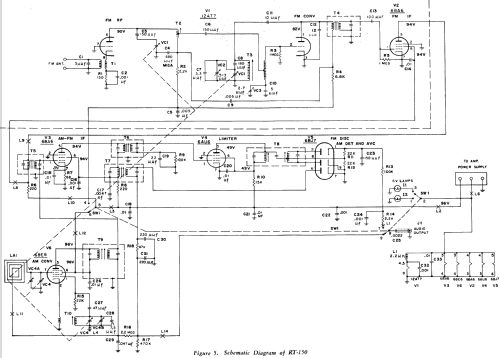

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 15 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: G-1707 - Philco, Philadelphia Stg. Batt
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Philco Model G-1707 is an AC operated 6 Tube AM/FM Tuner with 4 tube Phono Amplifier and a 4 Speed Record Changer. Uses Tuner RT-150. Also uses Record Changer M-41 with speeds of 16-2/3, 33-1/3, 45 and 78 RPM. This model has Qty(1) 10" PM woofer and Qty(1) type "S" electrostatic speaker. Cabinet is Blonde, Mahogany or Walnut.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 19, 1959
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 11-59, Set 463, Folder 11)
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
