G-1710S

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1959
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 78743

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Power out
  • 40 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: G-1710S - Philco, Philadelphia Stg. Batt
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The Philco Model G-1710S is an AC operated 8 Tube Phono Stereo Amplifier and a 4 Speed Record Changer. Uses Record Changer M-41 with speeds of 16-2/3, 33-1/3, 45 and 78 RPM. This model has Qty(2) 10" PM speakers, Qty(2) 3-1/2" PM speakers and Qty(2) type "S" electrostatic speakers. Cabinet is Blonde, Mahogany or Walnut. There are two chassis, one master and one slave. Audio Output: 40 watts peak output (20 watts each amplifier).
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 20, 1960

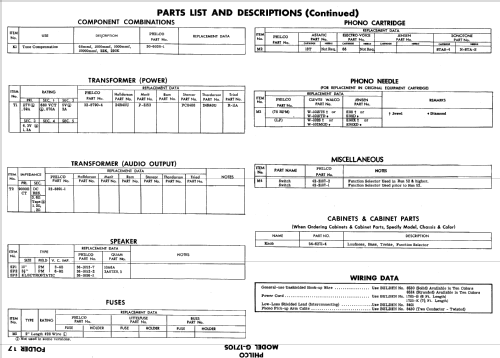

  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Trev Levick. See "Data change" for further contributors.
